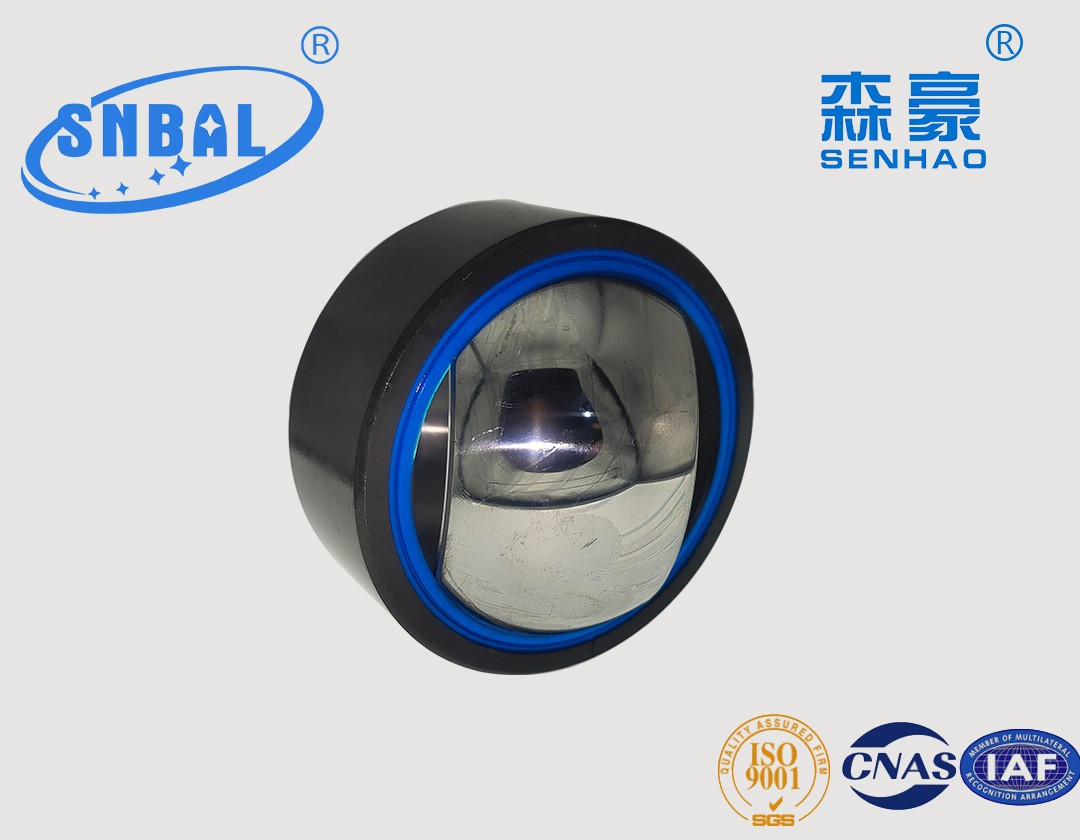

Home Products Radial spherical plain bearings Steel/PTFE fabric GEG...ET 2RS GEG...ET 2RS,GE...FW 2RS
Bearing Number | Boundary dimensions(mm) | Mass | |||||||
SNBAL | d | D | B | C | dk |
rs
min
|
r1s
min
|
α°
≈
|
Kg
≈
|
GEG15ET-2RS | 15 | 30 | 16 | 10 | 25 | 0.3 | 0.3 | 16 | 0.049 |
GEG17ET-2RS | 17 | 35 | 20 | 12 | 29 | 0.3 | 0.3 | 19 | 0.083 |
GEG20ET-2RS | 20 | 42 | 25 | 16 | 35.5 | 0.3 | 0.6 | 17 | 0.153 |
GEG25ET-2RS | 25 | 47 | 28 | 18 | 40.7 | 0.6 | 0.6 | 17 | 0.203 |
GEG30ET-2RS | 30 | 55 | 32 | 20 | 47 | 0.6 | 1 | 17 | 0.304 |
GEG35ET-2RS | 35 | 62 | 35 | 22 | 53 | 0.6 | 1 | 16 | 0.408 |
GEG40ET-2RS | 40 | 68 | 40 | 25 | 60 | 0.6 | 1 | 17 | 0.542 |
GEG45ET-2RS | 45 | 75 | 43 | 28 | 66 | 0.6 | 1 | 15 | 0.713 |
GEG50ET-2RS | 50 | 90 | 56 | 36 | 80 | 0.6 | 1 | 17 | 1.14 |
GEG60ET-2RS | 60 | 105 | 63 | 40 | 92 | 1 | 1 | 17 | 2.05 |
GEG70ET-2RS | 70 | 120 | 70 | 45 | 105 | 1 | 1 | 16 | 3.01 |
GEG80ET-2RS | 80 | 130 | 75 | 50 | 115 | 1 | 1 | 14 | 3.64 |
GEG90ET-2RS | 90 | 150 | 85 | 55 | 130 | 1 | 1 | 15 | 5.22 |
GEG100ET-2RS | 100 | 160 | 85 | 55 | 140 | 1 | 1 | 14 | 6.05 |
GEG110ET-2RS | 110 | 180 | 100 | 70 | 160 | 1 | 1 | 12 | 9.68 |
