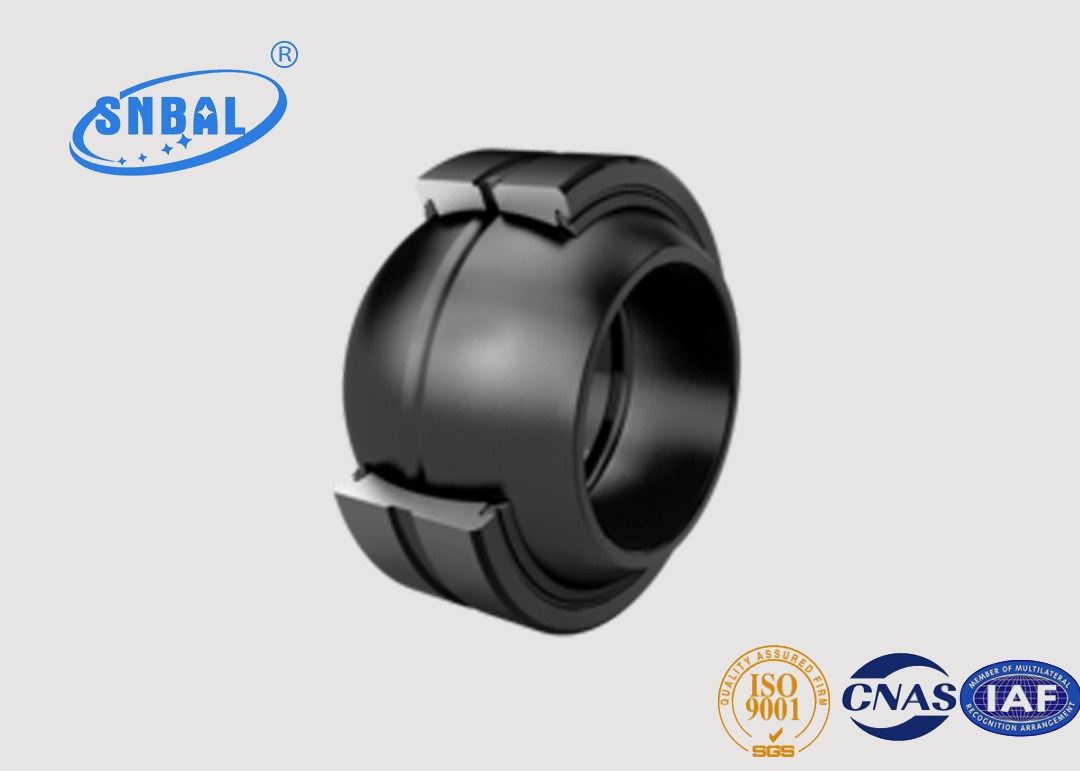

Home Products Radial spherical plain bearings Steel/Steel GEG...ES,GEG...ES 2RS GEG...ES,GEG...ES 2RS
Bearing Number | Boundary dimensions(mm) | Mass | ||||||||
SNBAL |
d | D | B | C | dk |
rs
min
|
r1s
min
|
α°
≈
|
Kg
≈
|
|
GEG15ES | GEG15ES-2RS | 15 | 30 | 16 | 10 | 25 | 0.3 | 0.3 | 16 | 0.049 |
GEG17ES | GEG17ES-2RS | 17 | 35 | 20 | 12 | 29 | 0.3 | 0.3 | 19 | 0.083 |
GEG20ES | GEG20ES-2RS | 20 | 42 | 25 | 16 | 35.5 | 0.3 | 0.6 | 17 | 0.153 |
GEG25ES | GEG25ES-2RS | 25 | 47 | 28 | 18 | 40.7 | 0.6 | 0.6 | 17 | 0.203 |
GEG30ES | GEG30ES-2RS | 30 | 55 | 32 | 20 | 47 | 0.6 | 1 | 17 | 0.304 |
GEG35ES | GEG35ES-2RS | 35 | 62 | 35 | 22 | 53 | 0.6 | 1 | 16 | 0.408 |
GEG40ES | GEG40ES-2RS | 40 | 68 | 40 | 25 | 60 | 0.6 | 1 | 17 | 0.542 |
GEG45ES | GEG45ES-2RS | 45 | 75 | 43 | 28 | 66 | 0.6 | 1 | 15 | 0.713 |
GEG50ES | GEG50ES-2RS | 50 | 90 | 56 | 36 | 80 | 0.6 | 1 | 17 | 1.14 |
GEG60ES | GEG60ES-2RS | 60 | 105 | 63 | 40 | 92 | 1 | 1 | 17 | 2.05 |
GEG70ES | GEG70ES-2RS | 70 | 120 | 70 | 45 | 105 | 1 | 1 | 16 | 3.01 |
GEG80ES | GEG80ES-2RS | 80 | 130 | 75 | 50 | 115 | 1 | 1 | 14 | 3.64 |
GEG90ES | GEG90ES-2RS | 90 | 150 | 85 | 55 | 130 | 1 | 1 | 15 | 5.22 |
GEG100ES | GEG100ES-2RS | 100 | 160 | 85 | 55 | 140 | 1 | 1 | 14 | 6.05 |
GEG110ES | GEG110ES-2RS | 110 | 180 | 100 | 70 | 160 | 1 | 1 | 12 | 9.68 |
GEG120ES | GEG120ES-2RS | 120 | 210 | 115 | 70 | 180 | 1 | 1 | 16 | 14.01 |
GEG140ES | GEG140ES-2RS | 140 | 230 | 130 | 80 | 200 | 1 | 1 | 16 | 19.01 |
GEG160ES | GEG160ES-2RS | 160 | 260 | 135 | 80 | 225 | 1.1 | 1.1 | 16 | 20.02 |
GEG180ES | GEG180ES-2RS | 180 | 290 | 155 | 100 | 250 | 1.1 | 1.1 | 14 | 32.21 |
GEG200ES | GEG200ES-2RS | 200 | 320 | 165 | 100 | 275 | 1.1 | 1.1 | 15 | 45.28 |
GEG220ES | GEG220ES-2RS | 220 | 340 | 175 | 100 | 300 | 1.1 | 1.1 | 16 | 51.12 |
GEG240ES | GEG240ES-2RS | 240 | 370 | 190 | 110 | 325 | 1.1 | 1.1 | 15 | 65.12 |
GEG260ES | GEG260ES-2RS | 260 | 400 | 205 | 120 | 350 | 1.1 | 1.1 | 15 | 82.44 |
GEG280ES | GEG280ES-2RS | 280 | 430 | 210 | 120 | 375 | 1.1 | 1.1 | 15 | 97.21 |
