GEGZ..ES(2RS)

Home      Products     Radial spherical plain bearings Steel/Steel     GEGZ..ES(2RS)       GEGZ..ES(2RS)


  • GEGZ..ES(2RS)

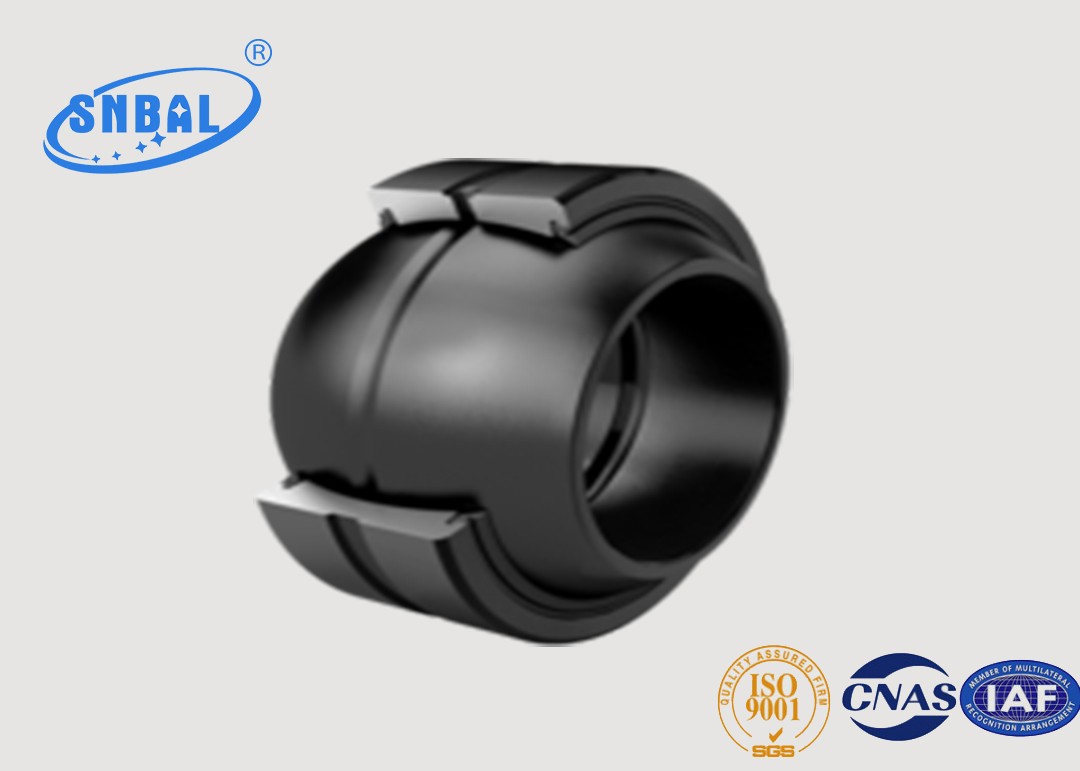

GEGZ..ES(2RS)

Product size and parameters
Bearing Number Boundary dimensions(mm) Mass
SNBAL
d D B C dk
rs
min
r1s
min
α°
Kg
GEGZ31ES GEGZ31ES-2RS 31.75 61.913 35.306 28.575 54.7 0.6 1 15 0.454
GEGZ38ES GEGZ38ES-2RS 38.1 71.438 40.132 33.325 63.9 0.6 1 14 0.726
GEGZ44ES GEGZ44ES-2RS 44.45 80.963 46.228 38.1 73 0.6 1 14 1.14
GEGZ50ES GEGZ50ES-2RS 50.8 90.488 52.578 42.85 82 0.6 1 14 1.68
GEGZ57ES GEGZ57ES-2RS 57.15 100.013 58.877 47.625 92 0.6 1 14 2.01
GEGZ63ES GEGZ63ES-2RS 63.5 111.125 64.643 52.375 100 1 1 14 2.95
GEGZ69ES GEGZ69ES-2RS 69.85 120.65 70.866 57.15 109.5 1 1 14 3.63
GEGZ76ES GEGZ76ES-2RS 76.2 130.175 76.759 61.9 119 1 1 14 4.36
GEGZ82ES GEGZ82ES-2RS 82.55 139.7 82.931 66.675 128 1 1 14 5.31
GEGZ88ES GEGZ88ES-2RS 88.9 149.225 90.424 71.425 137 1 1 14 6.81
GEGZ95ES GEGZ95ES-2RS 95.25 158.75 94.945 76.2 146 1 1 14 8.85
GEGZ101ES GEGZ101ES-2RS 101.6 177.8 107.315 85.725 164.5 1 1 10 10.2
GEGZ114ES GEGZ114ES-2RS 114.3 196.85 119.126 95.25 183 1 1 10 13.6
GEGZ139ES GEGZ139ES-2RS 139.7 222.25 125.73 104.775 207 1 1 9 20.4
